Performing Rigs

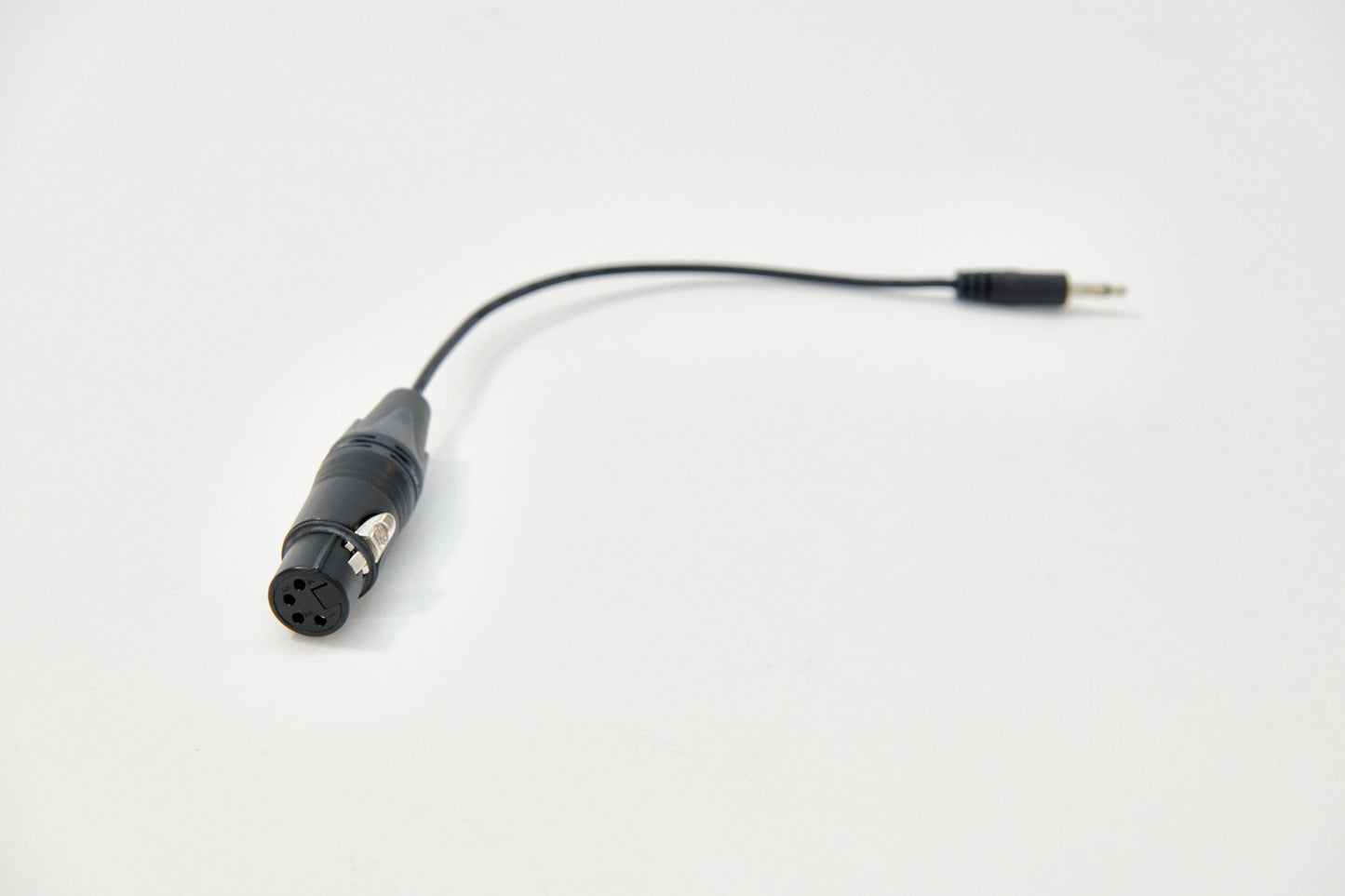

Pilot Input Adapter

Pilot Input Adapter

Product Code: MK-007

Adapts TRS Pilot Input jack to Female 4-Pin XLR

Specs

Length = 11" (28cm)

Weight = 0.12 lb. (54.43g)

Triggering Pilot Remotely

You can trigger Pilot's programmed movements remotely via the TRS Trigger Input port.

- This input port is designed as a relay closure connection - no external voltage is needed to trigger the action. Please do send a powered signal from your motion control system!

- We also make the Pilot Connection Kit, which makes it easy to connect to most motion control systems

- Questions about Triggering Pilot remotely? Please drop us a line info@performingrigs.com

View full details

Collapsible content

If you’re a photographer shooting stills & GIFS:

In ecommerce one of the most common tasks is 360° views, exposures divided equally and repeated over many products or set-ups.  This repetitive work is simplified and made identical with Pilot combined with Pour, Spin or Twirl.

If you’re shooting stills and normal speed motion:

You may be able to avoid using specialized, keyboard operated software/hardware such as Dragonframe DMC-32,  Arduino, etc.No need to DIY — sequences, from simple to multi-Rig complex, are controlled in your hand.

If you’re shooting with a motion control system or robot arm:

-Pilot accepts low voltage relay trigger signals from many motion control systems. Pilot receives the signal, then runs the program you create.
-Pilot provides a convenient separate method of control, outside the robot system, allowing our Rigs to be coordinated without disturbing the motion control system operator.  Each can work independently and increase efficiency.
-Depending on which motion control system you use, you may or may not be able to output step & direction signals to our Motorized Rigs.  Pilot is that solution.

Two Modes of Operation

Manual Mode

- Operate any Motorized Rig at speeds from 1-99
-Alternate direction of rotation to suit your need
- Push-button Stop function

Auto Mode

- A-to-B point programming for up to 4 Rigs
- Speed, Ramping, Delay, and Loop controls
- Can receive remote signal to trigger moves

Manual Mode

- Operate any Motorized Rig at speeds from 1-99
-Alternate direction of rotation to suit your need
- Push-button Stop function

Auto Mode

- A-to-B point programming for up to 4 Rigs
- Speed, Ramping, Delay, and Loop controls
- Can receive remote signal to trigger moves

Manually operate Rigs at a constant speed

Easily program up to 4 Rigs
