Rotational motion, adaptable form
Spin consists of a Self-Centering Chuck, Waterproof Motor, mounting brackets, and Baby Pin Mount
Spin Kit Includes:- Spin Rig (Chuck, Motor, brackets, Baby Pin Mount)
- Waterproof Bowl attachment
- Turntable Top w/ white & black plexi discs
- Tabletop Base with leveling feet
- Custom Cable, 25'
- Studio Crate
Features
- Chuck attachment allows you to easily center objects of various sizes, up to 5" diameter
- Water-tight Bowl attachment allows for Spinning a wide variety of objects
- Turntable platen makes Spin a low-profile turntable that can squeeze into tight spaces on set
- Baby Pin Mount allows for flexible positioning at any angle
- Tabletop Leveling Base allows for stable mounting on a surface

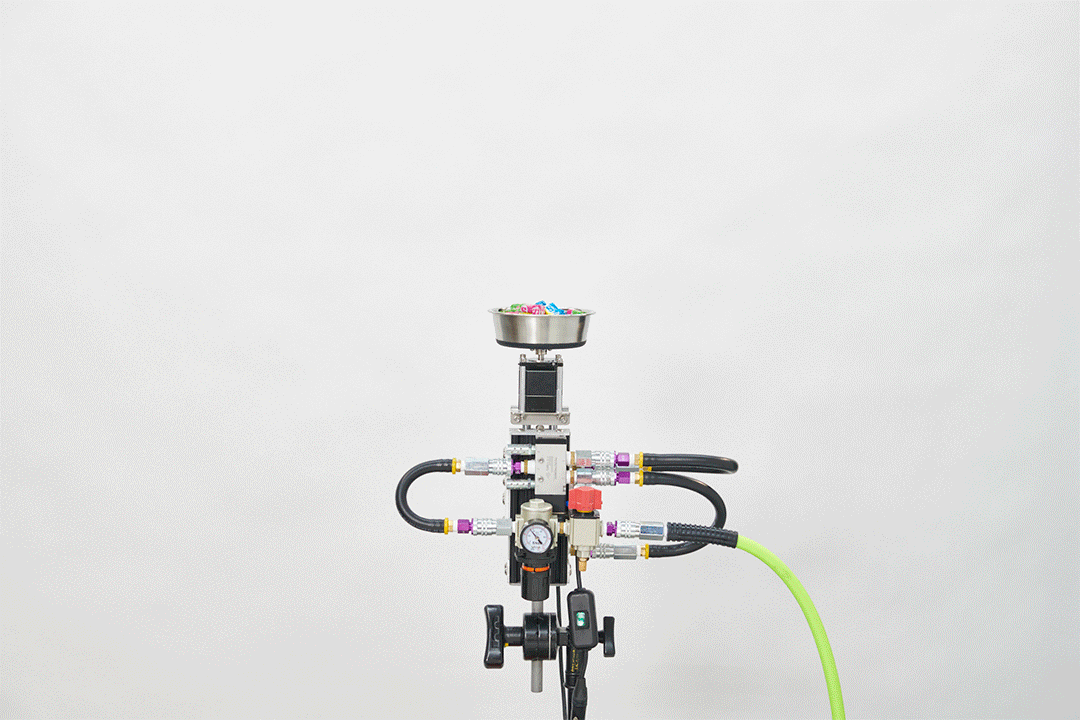

- Spin can be used as an attachment for Launch. It mounts using the same 4 bolts as other Launch attachments
Specs
IP65 Waterproof Nema 23 Stepper Motor
- Rated current/phase = 4.0A
- Holding torque = 1.2Nm (169.97oz.in)
- Shaft Diameter: Φ8mm
- Frame Size: 57 x 57mm
- Body Length: 65mm
- Cable Lead Length: 1000mm (~39")
- IP Rating: IP65
- Weight: 0.8kg (1.75lbs.)

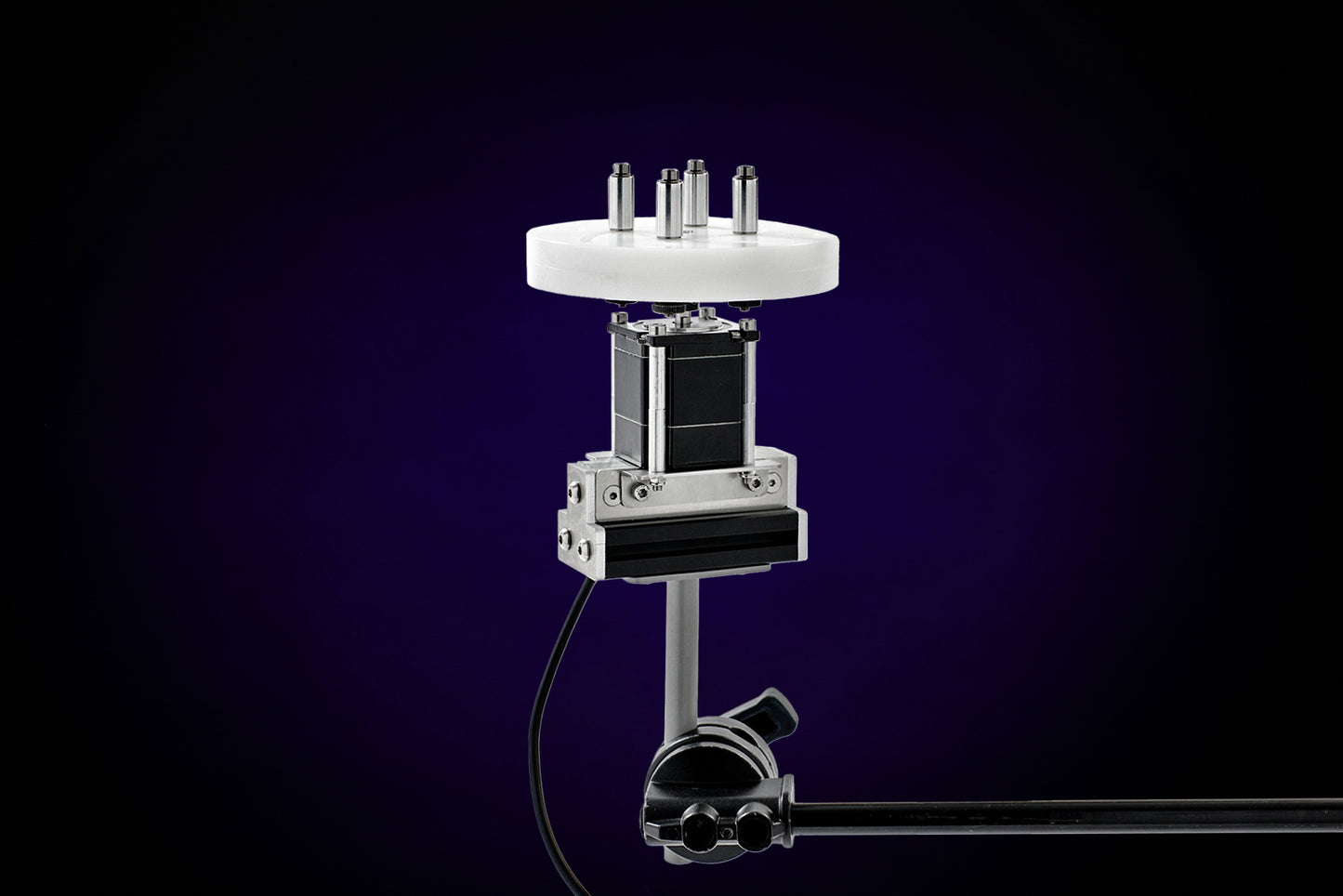

Self-Centering Chuck
- Diameter = ~6" (150mm)
- Distance between posts when fully expanded = 4.625" (~117.5mm)
- Distance between posts when fully contracted = 1.5" (38.1mm)
- Post height (including bolt head) = 1.25" (31.75mm)
- Weight = 1.1lbs. (0.499kg)

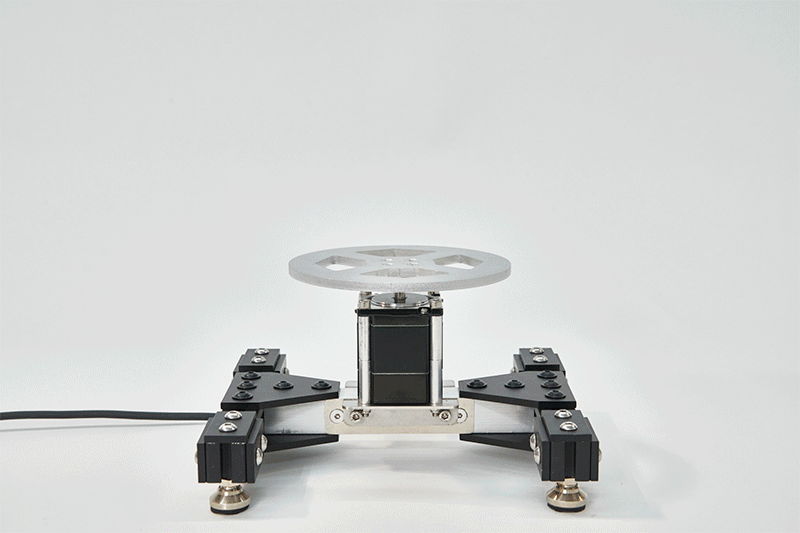

Turntable
- Diameter = ~6" (150mm)
- Thickness = 0.25" (6.35mm)
- Material = 5052 H32 Aluminum
- Weight = 0.56lb. (0.254kg)
Waterproof Bowl
- Diameter at opening = ~5.5" (14cm)
- Diameter at base = ~4.4" (11.2cm)
- Depth = 1.8" (4.6cm)
- Material = Stainless steel
- Weight = 0.34lb. (0.155kg)

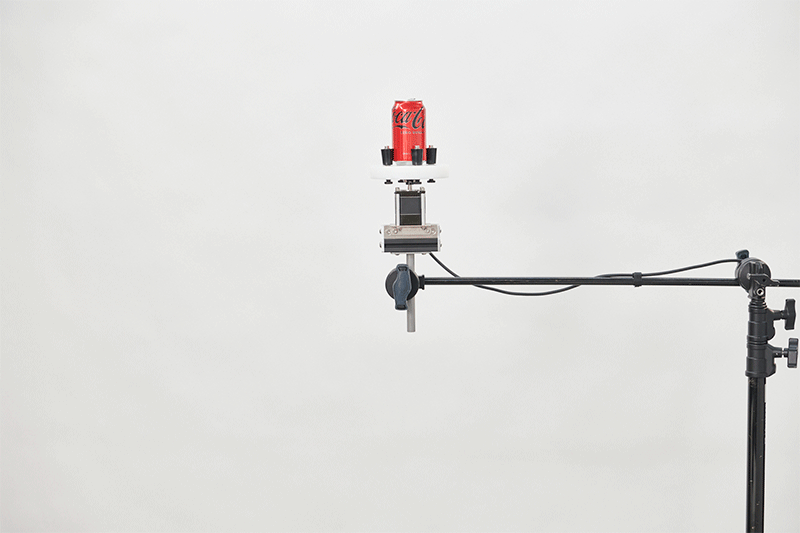

Baby Pin Mount
- Baby Pin length = 6" (152.4mm)
- Dimensions (L x W x H)= 4.57 x 2.05 x 8.11" (116 x 52 x 206mm)
- Baby Plate material = powder coated 304 stainless steel
- Weight = 1.7lb. (0.771kg)

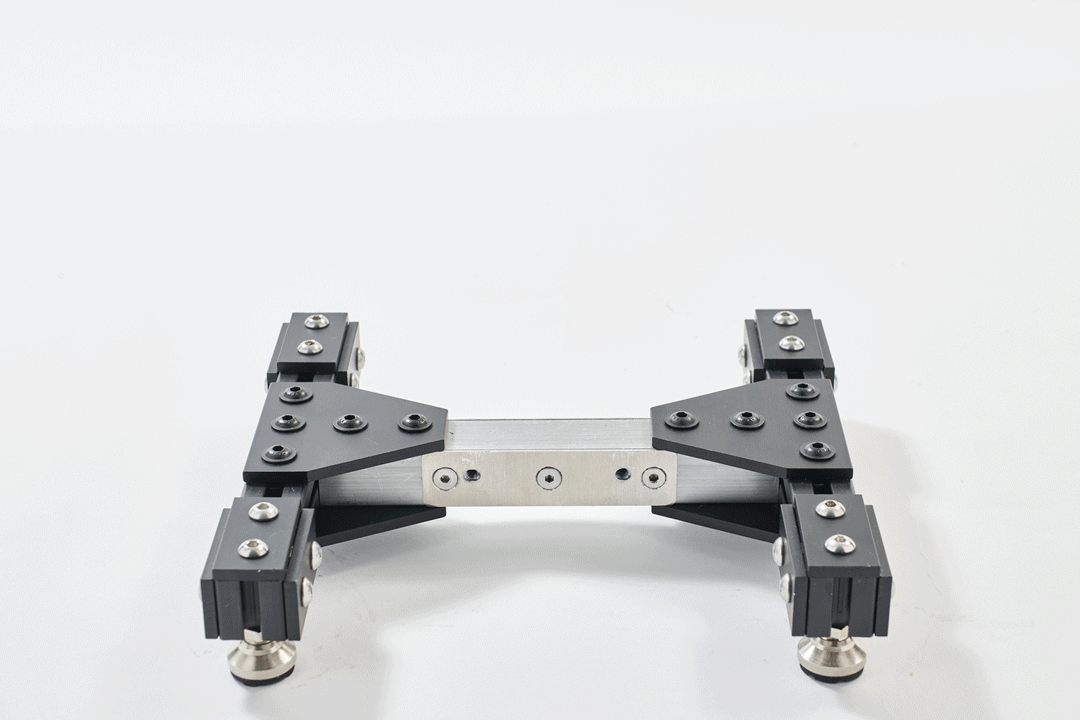

Tabletop Base
- Dimensions (L x W x H) = 8.5 x 10 x 2.25"
- Weight = 3.42lb. (1.551kg)
Spin Kit weight = 19.88 lbs. (9.02 kg)
