Spark+

3-Channel manual trigger, power supply, and signal relay for Jet, Jump, and Launch (24V)

Features

• Manual push-button operation of Jet, Jump, and Launch

• Inputs trigger signals from your device (MRMC Trigger Box, Dragonframe, etc.)
• Adds 24V to input signals for powering Jet, Jump, and Launch
• Backlit buttons illuminate when pressed and when an input signal is received
• Included power supply allows for usage of Jet, Jump, and Launch without a robot arm or additional device

Uses

• Spark+ allows the Special Effects Rigger and Robot Operator to work independently, increasing efficiency
• Spark+ helps get your Rig dialed in quickly, and put away quickly

• Jet
• Manual operation of Jet
• Opening the valve to prime the pump, purge air from line

• Test firing the Rig to ensure accurate aim
• Decompressing & draining the Rig prior to putting away
• Jump
• Manual operation of Jump
• Test firing the Rig to determine camera position, lighting, styling, etc.
• Decompressing the Rig prior to putting away
• Launch
• Manual operation of Jump
• Test firing the Rig to determine camera position, lighting, styling, etc.
• Decompressing the Rig prior to putting away

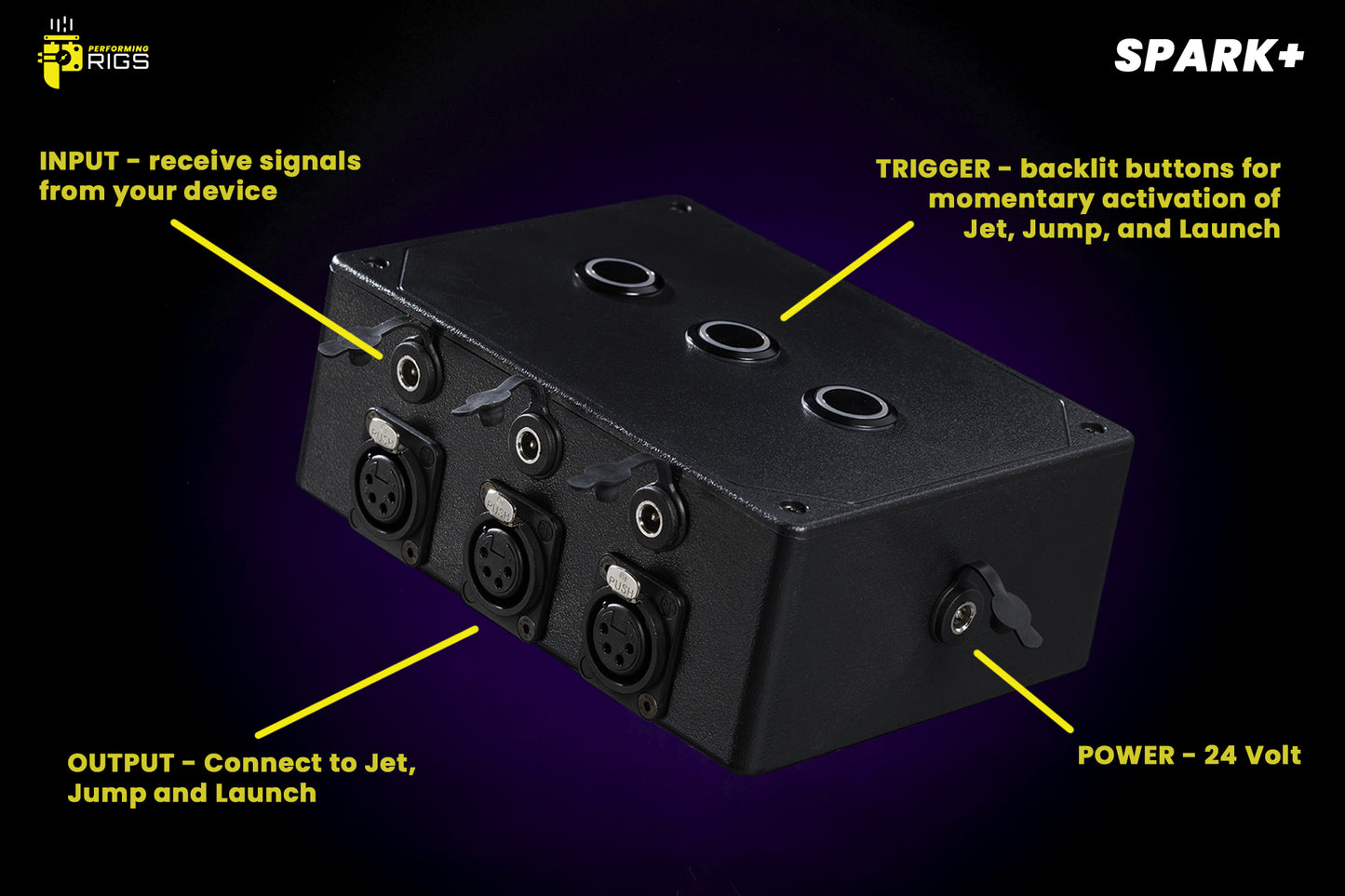

Specs

• Spark+ Dimensions = 6.112" L x 4.612" W x 2.5" H (155.24mm x 117.14mm x 63.5mm)
• Spark+ Weight =
• Gold contact Neutrik 4-Pin XLR connectors
• Momentary push-buttons mechanically rated to 1,000,000 cycles

Includes

• 24V Power supply

• Trigger box

Connecting Spark+ to MRMC Trigger Box

1. Connect to Spark+
1. Connect the XLR end of a Relay Adapter to a Custom Cable
2. Connect the barrel plug end of the Relay Adapter to an input barrel jack of Spark+
2. Connect to your device
1. At the other end of the Custom Cable, add a Wire Lead Adapter
2. Connect the leads to your device. Black = Negative/Ground

3. Now you can trigger the Rigs manually and through Flair!


*The MRMC Trigger Box does not output 24V power through the relay connections, so it is necessary to connect the setup as indicated above. Using the Y-Connector configuration as in the SISU setup will not work.

** This configuration will work for any device that provides a relay signal output

Connecting Spark+ to SISU Cinema Robotics

1. Connect to Spark+
1. Connect a Female Y Connector to Jet, Jump, or Launch

2. Attach one end of a Custom Cable to one side of the Y Connector
3. Attach the other end of the Custom Cable to Spark+
2. Connect to your SISU machine
1. Attach one end of a Custom Cable to the other side of the Y Connector
2. At the other end of the Custom Cable, add a Wire Lead Adapter
3. Connect leads to your SISU machine. Black = Negative/Ground
3. Now you can trigger the Rigs manually and through SISU Lab!

*SISU machines output 24V power, so no need to add a power supply.

Usage Tips

• Two Rigs can be triggered from one signal or button press.  To accomplish this, add a Female Y Connector to the output of your choice, then connect 2 Rigs to the Y Connector.  Now, both Rigs will activate at the exact same time
