Performing Rigs

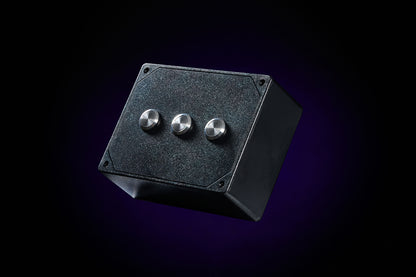

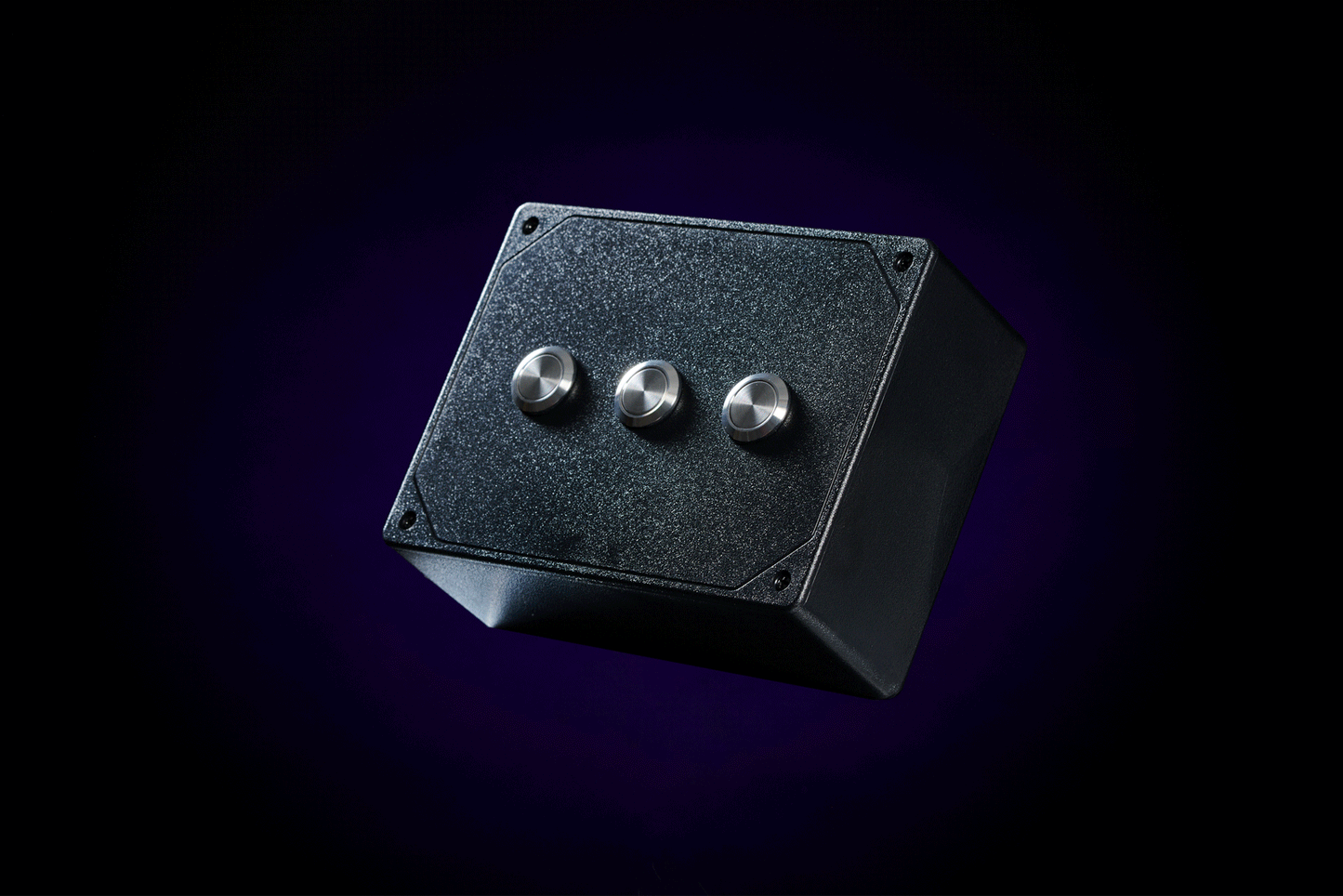

Spark

Spark

Product Code: AS-241

3-Channel manual trigger and for Jet, Jump, and Launch (24 Volt)

Features

  • Manual push-button operation of Pneumatic and Electronically Activated Rigs
  • Allows for usage of Pneumatic and Electronically Activated Rigs without a robot arm or additional external controller/device
  • Also available in 12V configuration
    • Please note this request at the time of purchase

Uses

  • Spark helps get your Rig dialed in quickly, and put away quickly
    • Jet
      • Manual operation of Jet
      • Opening the valve to prime the pump, purge air from line
      • Test firing the Rig to ensure accurate aim
      • Decompressing & draining the Rig prior to putting away
    • Jump
      • Manual operation of Jump
      • Test firing the Rig to determine camera position, lighting, styling, etc.
      • Decompressing the Rig prior to putting away
    • Launch
      • Manual operation of Jump
      • Test firing the Rig to determine camera position, lighting, styling, etc.
      • Decompressing the Rig prior to putting away

Specs

  • Spark Dimensions = 6.112" L x 4.612" W x 2.5" H (155.24mm x 117.14mm x 63.5mm)
  • Spark Weight =
  • Gold contact Neutrik 4-Pin XLR connectors
  • Momentary push-buttons mechanically rated to 1,000,000 cycles

Includes

  • Spark
  • 24V Power supply

Connecting Spark to SISU Cinema Robotics

Spark allows for a SISU Cinema robot to integrate with Jet, Jump, or Launch so both the Robot Operator and the Special Effects Rigger can trigger the Rigs independently.

  1. Connect to Spark
    1. Connect a Female Y Connector to Jet, Jump, or Launch
    2. Attach one end of a Custom Cable to one side of the Y Connector
    3. Attach the other end of the Custom Cable to Spark
  2. Connect to your SISU machine
    1. Attach one end of a Custom Cable to the other side of the Y Connector
    2. At the other end of the Custom Cable, add a Wire Lead Adapter
    3. Connect leads to your SISU machine. Black = Negative/Ground
Now you can trigger your Rig manually and through the SISU software!


Usage Tips

  • Two Rigs can be triggered from one input signal or button press.  To do this, add a Female Y Connector to the output of your choice, then connect 2 Rigs to the Y Connector.  Now, both Rigs will activate at the exact same time
